Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

認証
中国 DONGGUAN MAUFUNG MACHINERY CO.,LTD 認証
中国 DONGGUAN MAUFUNG MACHINERY CO.,LTD 認証
オンラインです

Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

大画像 :  Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

商品の詳細:
起源の場所: 中国広州
ブランド名: MAUFUNG
お支払配送条件:
最小注文数量: 1
価格: $8,000-9,000

Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size

説明
力: 1.5kw 電圧: 220V/50Hz
寸法: 960*870*1390mm 重さ: 220kg
厚さを切る: 100mm 作業速度: 23回/分
最小紙のサイズ: 105*50mm 最大紙のサイズ: 490*450mm
ワーク テーブルのサイズ: 860*380mm 空気圧: 6-8bar
角丸モールド: 1/8 インチ、3/16 インチ、1/4 インチ、5/16 インチ、3/8 インチ、7/16 インチ、1/2 インチ、9/16 インチ、5/8 インチ、3/4 インチ、7/8 インチ、1 ' 自動グレード: 自動
機械の寸法: 960*870*1390mm 正味重量: 220kg
モデル番号: MF-DCM470
ハイライト:

100mm Cutting Thickness Round Corner Cutting Machine

,

23 times/min Working Speed Book Cutting Machine

,

490*450mm Max Paper Size Notebook Cutting Machine

Pneumatic Double Head Angle Cutting Machine Book Round Corner Cutting Machine Notebook Cutting Machine
Product Specifications
Model No MF-DCM470
Power Supply 220V /50HZ
Max Paper size 490*450mm
Min Paper size 105*50mm
Max cutting thickness 100mm
Round corner mold 1/8'',3/16'',1/4'',5/16'',3/8'',7/16'', 1/2'',9/16'',5/8'',3/4'',7/8'', 1'
Working Table size 860*380mm
Air pressure 6-8bar
Machine Dimensions (L*W*H) 960*870*1390mm
Working Speed 23 times/min
Weight 220kg
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 0 Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 1

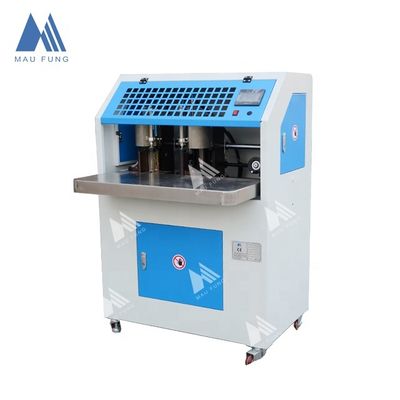

Pneumatic double head with max cutting 100mm thickness.
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 2 Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 3

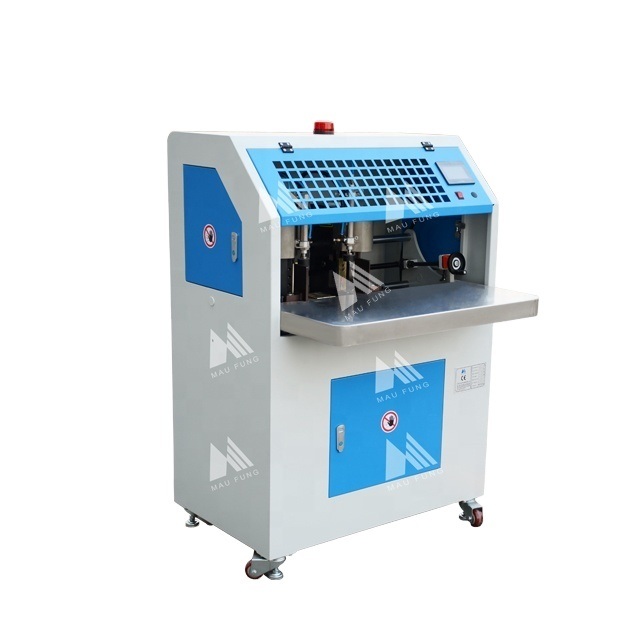

Touch screen for convenient operation.
Applications
MF-DCM470 Hydraulic Double-head Angle Cutting Machine applies to books, playing cards, invitations, trademarks, business cards and other printing and cutting round, triangle shape. This machine uses hydraulic system. It can cut two sides of angles one time with simple operation and high efficiency.
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 4 Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 5 Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 6
Certifications
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 7
Company Information
We Dongguan Maufung Machinery Co., Ltd is a leading manufacturer in the hard cover books binding machines and Rigid Box packaging machines. Our company mainly produces Photo Book Lay Flat Machine, Book Block Head Band Machine, Semi Auto Case Maker, Hard Cover Book Case In Machine, Hard Cover Book Pressing & Creasing Machine, Book Block Rounding Machine, fully automatic punching machine, hydraulic impacting spine machine, wire O binding machines, rigid box forming machines, etc. We possess our independent well-known brands MAUFUNG.

We take the quality and after-sale service as the core of our business which makes our brand good fame in the world. And we have a very professional R&D team with over 20 years experience in this line. We care about the market trends, focus on the machine quality and performance, and attach great importance to customers demand. Products sell well in China and have been exported to more than 100 countries.
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 8
Exhibition Participation
We took part in South Print Exhibition each year, Print China Exhibition, China Print Exhibitiion and Shanghai All in Print Exhibition, and also 2019 Egypt Techono print, 2016 Drupa exhibition, 2015 Dubai Gulf Print & Pack etc. We will take part in 2020 Drupa Exhibition. Looking Forward to meeting you in our booth 6/D95.
Pneumatic Double Head Round Corner Cutting Machine with 100mm Cutting Thickness 23 times/min Working Speed and 490*450mm Max Paper Size 9
