商品の詳細:
|
| 最高速度: | 450 PCS/時間 | 最大サイズ: | 390*297mm |
|---|---|---|---|
| 最小サイズ: | 100*100mm | 電圧: | 380/220V,3PH |
| ブロック厚さ: | 4～60mm | ハイライト: | スピードが速い 調節が簡単 |
| 使用法: | ハードカバー本,ノートブック,写真本を作る機械 | 応用: | 印刷機,出版社,ノートブックメーカー |
| ハイライト: | lay flat photo book machine,auto photo album pressing machine,hard cover book forming press |
||

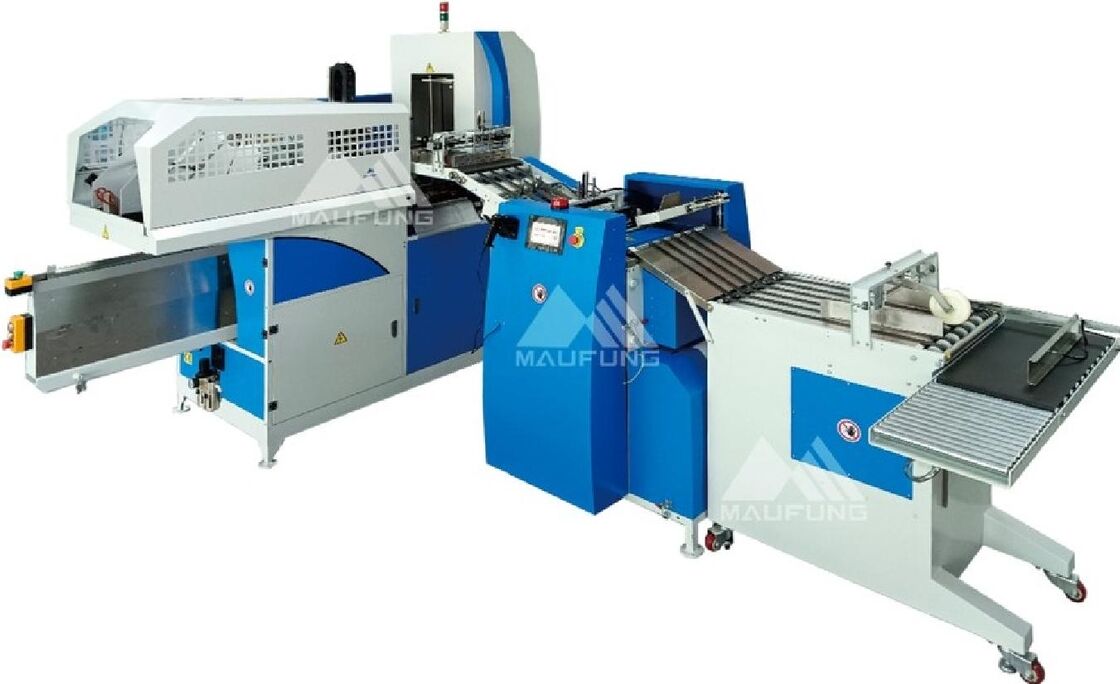

Auto Photo Album Casing In And Forming Pressing Machine, Auto Lay Flat Binding Machine MF-FAC390
Automatic Book Auto Casing in and Forming Pressing Machine MF-FAC390 is widely used for notebooks, photo books and other hard cover books. It is a good choice for print finishing process. We adopt the PLC controlling systems with touch screen operating systems. Less operating technique is required. It will auto push the cases, auto combine the cases with blocks, auto nipping and joint forming, and auto stack the finished books.
| Model | MF-FAC390 |
| Power Supply | 380V, 50HZ |
| Mainframe Power | 7.2kw |
| Block Thickness | 4-60mm |
| Block Size (Max) | 380*270mm |
| Block Size (Min) | 100*100mm |
| Max On-line Speed | 450 pcs/hour |
| Dimension(L*W*H) | 3890*2650*2000mm |
| Weight | 1500KG |
1. Adopt feeder for cases delivery;
2. Add cases pre-creasing function. The cases are nipping before casing in for a better effect.
3. Secial designed casing in alignment device to ensure a precise case in effect;
4. Auto joint forming and nipping the book;
5. Auto delivers the finished products greatly saving the labor.
6. Auto stack the books.
